The Multihead Weigher Machine is an advanced and high-precision weighing system designed to deliver fast, accurate, and consistent weight measurement for a wide range of products. Ideal for industries such as food processing, snacks, confectionery, frozen foods, dry fruits, granules, and other bulk materials, this automatic weighing machine significantly enhances production efficiency and reduces product wastage.
Engineered with multiple weighing heads, the system calculates the most accurate weight combination in milliseconds, ensuring high-speed and precise filling operations. The intelligent control panel and user-friendly interface allow easy operation, quick parameter adjustments, and minimal training requirements. Its robust stainless steel construction ensures durability, hygiene, and compliance with industry standards, making it suitable for demanding industrial environments.
| Filling System | Weigher Filler 10 Head & 14 Head |
| Filling Capacity | 10gm. To 1000gm. |
| Filling Accuracy | +/- 1 to 2% (Depending upon nature of Product) |
| Type of Sealing | Center Seal |
| Sealing System | By Air Cylinder / Servo |
| Bag Pulling System | AC Drive / Servo Drive |
| Film Roll Size | 100 to 500mm Width / 80 to 300mm Length |
| Film Material | Laminated Film in Roll Supported Film e.g. Aluminum Foil, PE, PP |
| Speed | 30 to 60 Bag/Min. (Varies with the nature of Product & Filling Range) |
| Machine Controlled | PLC |
| Power Supply | 220V AC Single Phase & 415V AC Three Phase |
| Machine Size | 1850 x 2200 x 3200mm (L × W × H) |
| Product Packet | Potato Chips, Banana Chips, Kurkure, Namkeen, Dry Fruit, All Types of Pulses, Grains & Dal, Sugar, Tea, Rawa, Suji, etc. |
Four Head Weigher Machine ek highly efficient aur compact packaging solution hai jo chhote aur medium weight products ke liye design ki gayi hai. Yeh machine accurate weighing system ke saath aati hai jo 10gm se 100gm tak ke products ko precision ke saath fill karti hai. ±1 to 2% filling accuracy ke saath yeh machine consistent output aur minimum wastage ensure karti hai.
Isme center sealing system diya gaya hai jo air cylinder ya servo mechanism se operate hota hai, jisse smooth aur secure sealing milti hai. AC drive ya servo drive based bag pulling system packaging process ko stable aur reliable banata hai. PLC controlled system hone ki wajah se machine user-friendly hai aur production monitoring asaan ho jata hai.
| Filling System | Weigher Filler |
| Filling Capacity | 10gm. To 100gm. |
| Filling Accuracy | +/- 1 to 2% (Depend upon nature of Product) |
| Type of Sealing | Center Seal |
| Sealing System | By Air Cylinder / Servo |
| Bag Pulling System | AC Drive / Servo Drive |
| Film Roll Size | 100 to 500mm Width / 80 to 300mm Length |
| Film Material | Laminated Film in Roll Supported Film E.g. Aluminum Foil, PE, PP |
| Speed | 10 TO 30 Bag/min. (Varies with the nature of Product & Filling Range) |
| Machine Controlled | PLC |
| Power Supply | 220V AC Single Phase & 415V AC Three Phase |
| Machine Size | 1700 x 1500 x 2800mm (LxWxH) |
| Product Packet | Kurkure, Namkeen, Dry Fruit, All types of Pulses, Grains & Dal, Sugar, Tea, Rawa, Suji, etc. |

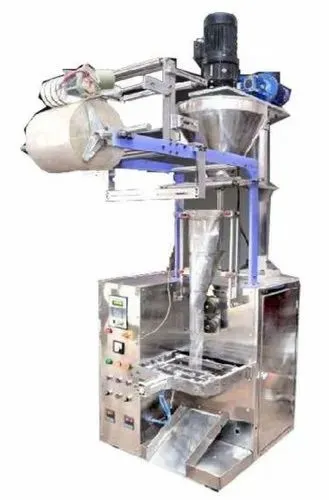

Full Pneumatic Auger Filler Machine specially powder aur free-flowing products ki accurate packaging ke liye design ki gayi hai. Yeh machine auger filling system par kaam karti hai jo 10gm se 1000gm tak ke products ko high precision ke saath fill karti hai. Exchangeable auger accessory ki madad se different weight ranges easily handle ki ja sakti hain. ±1 to 2% filling accuracy ke saath yeh machine consistent output aur minimum product wastage ensure karti hai.
Machine center sealing type ke saath available hai aur sealing system air cylinder ya servo mechanism se operate hota hai, jisse strong aur secure packaging milti hai. AC drive / servo drive based bag pulling system smooth aur stable performance deta hai. PLC controlled system hone ki wajah se operation simple, user-friendly aur production monitoring efficient hoti hai.
| Filling System | Auger Filler |
| Filling Capacity | 10gm. To 1000 gm. (Exchange Auger Accessory) |
| Filling Accuracy | +/- 1 to 2% (Depend upon nature of Product) |
| Type of Sealing | Center Seal |
| Sealing System | By Air Cylinder / Servo |
| Bag Pulling System | AC Drive / Servo Drive |
| Film Roll Size | 100 to 500mm Width / 80 to 300mm Length |
| Film Material | Laminated Film in Roll Supported Film E.g. Aluminum Foil, PE, PP |
| Speed | 20 TO 45 Bag/min. (Varies with the nature of Product & Filling Range) |
| Machine Controlled | PLC |
| Power Supply | 220V AC Single Phase & 415V AC Three Phase |
| Machine Size | 1700 x 1200 x 2700mm (LxWxH) |
| Product Packet | Atta, Besan, Maida, Spice & Powder Etc... |

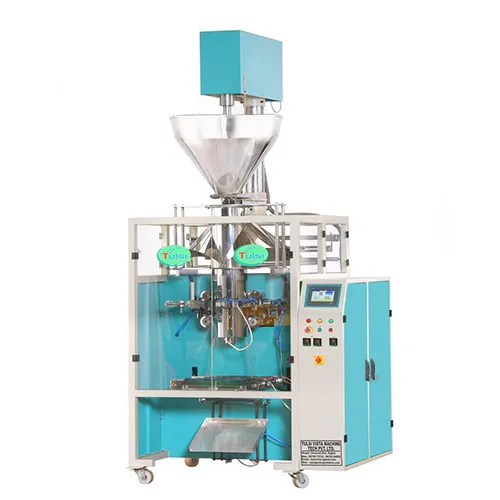

Atta Packaging Machine 1 To 10 kg specially flour aur powder-based products ki efficient aur accurate packaging ke liye design ki gayi hai. Yeh machine advanced auger filler system par kaam karti hai jo 1kg se 10kg tak ke products ko high precision ke saath fill karti hai. Exchangeable auger accessory ki madad se different weight ranges easily manage ki ja sakti hain, jisse production flexibility milti hai.
±1 to 2% filling accuracy ke saath yeh machine consistent output aur minimum product wastage ensure karti hai. Center seal type packaging aur air cylinder / servo based sealing system strong aur secure sealing provide karta hai. AC drive / servo drive bag pulling system smooth aur stable operation deta hai, jabki PLC control system machine ko user-friendly aur easy to operate banata hai.
| Filling System | Auger Filler |
| Filling Capacity | 1Kg. To 10 Kg (Exchange Auger Accessory) |
| Filling Accuracy | +/- 1 to 2% (Depend upon nature of Product) |
| Type of Sealing | Center Seal |
| Sealing System | By Air Cylinder / Servo |
| Bag Pulling System | AC Drive / Servo Drive |
| Film Roll Size | 450 to 850mm Width / Up to 750mm Length |
| Film Material | Laminated Film in Roll Supported Film E.g. Aluminum Foil, PE, PP |
| Speed | 6 TO 20 Bag/min. (Varies with the nature of Product & Filling Range) |
| Machine Controlled | PLC |
| Power Supply | 220V AC Single Phase & 415V AC Three Phase |
| Machine Size | 2000 x 1550 x 3400mm (LxWxH) |
| Product Packet | Atta, Besan, Maida, Spice & Powder Etc... |
Full Pneumatic Cup Filler Machine specially granular aur free-flowing products ki fast aur accurate packaging ke liye design ki gayi hai. Yeh machine volumetric cup filling system par kaam karti hai, jo different weight ranges jaise 20gm se 1000gm tak ke products ko efficiently fill karti hai. Exchangeable cup assembly ki madad se filling capacity easily change ki ja sakti hai, jisse production flexibility milti hai. ±1% se 3% tak ki filling accuracy ke saath yeh machine consistent output aur controlled wastage ensure karti hai.
Machine center seal packaging type ke saath aati hai aur sealing system air cylinder ya servo mechanism se operate hota hai, jo strong aur secure sealing provide karta hai. AC drive / servo drive bag pulling system smooth aur stable performance deta hai, jabki PLC controlled system operation ko simple aur user-friendly banata hai.
| Filling System | Volumetric Cup Filler |
| Filling Capacity |
(20gm to 100gm) (100gm to 500gm) (500gm to 1000gm) (Exchange Cup Assembly) |
| Filling Accuracy | +/- 1 to 3% (Depend upon nature of Product) |
| Type of Sealing | Center Seal |
| Sealing System | By Air Cylinder / Servo |
| Bag Pulling System | AC Drive / Servo Drive |
| Film Roll Size | 100 to 500mm Width / 80 to 300mm Length |
| Film Material | Laminated Film in Roll Supported Film E.g. Aluminum Foil, PE, PP |
| Speed | 20 TO 45 Bag/min. (Varies with the nature of Product & Filling Range) |
| Machine Controlled | PLC |
| Power Supply | 220V AC Single Phase |
| Machine Size | 1700 x 1200 x 2500mm (LxWxH) |
| Product Packet |
All types of Pulses, Grains & Dal Etc... Detergent Powder, Salt, Sugar, Tea, Rawa, Suji, Etc... |
Four Head Weigher Machine ek efficient aur versatile packaging solution hai jo powder aur semi-powder products ki accurate filling ke liye design ki gayi hai. Yeh machine auger filling system par kaam karti hai aur 10gm se 500gm tak ke products ko high precision ke saath fill karti hai. Exchangeable auger accessory ki madad se different weight ranges easily adjust ki ja sakti hain, jisse production flexibility milti hai. ±1% se 2% tak ki filling accuracy ke saath yeh machine consistent output aur controlled wastage ensure karti hai.
Machine center seal, 3 side seal aur 4 side seal options ke saath available hai, jo packaging style ke hisaab se flexibility deta hai. Sealing system air cylinder based hai jo strong aur reliable sealing provide karta hai. Clutch brake drive / AC drive based bag pulling system smooth aur stable performance ensure karta hai. PLC ya logic controller system machine ko user-friendly aur easy to operate banata hai.
| Filling System | Auger Filler |
| Filling Capacity | 10gm. to 500gm. (Exchange Auger Accessory) |
| Filling Accuracy | +/- 1 to 2% (Depend upon nature of Product) |
| Type of Sealing | Center Seal / 3 Side Seal / 4 Side Seal |
| Sealing System | By Air Cylinder |
| Bag Pulling System | Clutch Brake Drive / AC Drive |
| Film Roll Size | 100 to 350mm Width / 50 to 200mm Length |
| Film Material | Laminated Film in Roll Supported Film E.g. Aluminum Foil, PE, PP |
| Speed | 20 TO 45 Bag/min. (Varies with the nature of Product & Filling Range) |
| Machine Controlled | PLC / Logic Controller |
| Power Supply | 220V AC Single Phase / 415V AC Three Phase |
| Machine Size | 900 x 900 x 3050mm (LxWxH) |
| Product Packet | Atta, Besan, Maida, Spice & Powder Etc... |
Half Pneumatic Cup Filler Machine granular aur free-flowing products ki efficient aur cost-effective packaging ke liye design ki gayi hai. Yeh machine volumetric cup filling system par kaam karti hai jo 20gm se 500gm tak ke products ko accurately fill karti hai. Exchangeable cup assembly ki madad se different weight ranges easily adjust ki ja sakti hain, jisse production flexibility milti hai. ±1% se 3% tak ki filling accuracy ke saath yeh machine stable output aur controlled wastage ensure karti hai.
Machine center seal, 3 side seal aur 4 side seal options ke saath available hai, jo packaging style ke hisaab se versatility provide karta hai. Sealing system air cylinder based hai jo strong aur reliable sealing ensure karta hai. Clutch brake drive / AC drive bag pulling system smooth aur consistent operation deta hai, jabki PLC / logic controller machine ko easy-to-operate aur user-friendly banata hai.
| Filling System | Volumetric Cup Filler |
| Filling Capacity |
20gm to 50gm, 50gm to 100gm, 100gm to 250gm, 200 to 500gm (Exchange Cup Assembly) |
| Filling Accuracy | +/- 1 to 3% (Depend upon nature of Product) |
| Type of Sealing | Center Seal / 3 Side Seal / 4 Side Seal |
| Sealing System | By Air Cylinder |
| Bag Pulling System | Clutch Break Drive / AC Drive |
| Film Roll Size | 50 to 350mm Width / 50 to 200mm Length |
| Film Material | Laminated Film in Roll Supported Film E.g. Aluminum Foil, PE, PP |
| Speed | 20 TO 45 Bag/min. (Varies with the nature of Product & Filling Range) |
| Machine Controlled | PLC / Logic Controller |
| Power Supply | 220V AC Single Phase |
| Machine Size | 900 x 900 x 2000mm (LxWxH) |
| Product Packet |
All types of Pulses, Grains & Dal Etc... Detergent Powder, Salt, Sugar, Tea, Rawa, Suji, Etc... |
The Mechanical F.F.S. (Form Fill Seal) Machine is a reliable and efficient packaging solution designed for accurate and high-speed filling operations. It uses a volumetric cup filling and volumetric piston liquid filling system, making it suitable for both solid and liquid products. The machine offers a filling range from 10gm to 100gm and 5ml to 100ml with a filling accuracy of ±1 to 2%, depending on the nature of the product.
This machine supports center seal and three-side seal packaging and operates through a mechanical sealing and bag pulling system, ensuring consistent and smooth performance. It is compatible with laminated roll films such as Aluminum Foil, PE, and PP, with film width up to 250mm. The machine can achieve a speed of 40 to 80 bags per minute, depending on product type and filling range.
| Filling System | Volumetric Cup Filling, Volumetric Piston Liquid Filler |
| Filling Capacity | 10gm. to 100gm. / 5ml to 100ml. |
| Filling Accuracy | +/- 1 to 2% (Depend upon nature of Product) |
| Type of Sealing | Center Seal / 3 Side Seal |
| Sealing System | By Mechanical |
| Bag Pulling System | Mechanical Drive |
| Film Roll Size | 50 to 250mm-Width / 80 to 150mm-Length |
| Film Material | Laminated Film in Roll Supported Film E.g. Aluminum Foil, PE, PP |
| Speed | 40 TO 80 Bag/min. (Varies with the nature of Product & Filling Range) |
| Machine Controlled | Logic Controlled |
| Power Supply | 220V AC Single Phase |
| Machine Size | 700 x 500 x 1750mm (LxWxH) |
| Optional | Batch Coding |
