Mechanical FFS machine

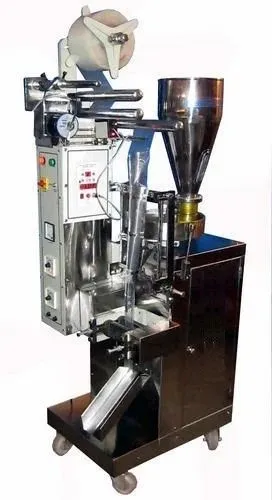

Mechanical FFS Machine





The Mechanical F.F.S. (Form Fill Seal) Machine is a reliable and efficient packaging solution designed for accurate and high-speed filling operations. It uses a volumetric cup filling and volumetric piston liquid filling system, making it suitable for both solid and liquid products. The machine offers a filling range from 10gm to 100gm and 5ml to 100ml with a filling accuracy of ±1 to 2%, depending on the nature of the product.

This machine supports center seal and three-side seal packaging and operates through a mechanical sealing and bag pulling system, ensuring consistent and smooth performance. It is compatible with laminated roll films such as Aluminum Foil, PE, and PP, with film width up to 250mm. The machine can achieve a speed of 40 to 80 bags per minute, depending on product type and filling range.



Technical Specifications

Mechanical F.F.S. Machine
Machine Name
Mechanical F.F.S. Machine
Filling System Volumetric Cup Filling, Volumetric Piston Liquid Filler
Filling Capacity 10gm. to 100gm. / 5ml to 100ml.
Filling Accuracy +/- 1 to 2% (Depend upon nature of Product)
Type of Sealing Center Seal / 3 Side Seal
Sealing System By Mechanical
Bag Pulling System Mechanical Drive
Film Roll Size 50 to 250mm-Width / 80 to 150mm-Length
Film Material Laminated Film in Roll Supported Film E.g. Aluminum Foil, PE, PP
Speed 40 TO 80 Bag/min. (Varies with the nature of Product & Filling Range)
Machine Controlled Logic Controlled
Power Supply 220V AC Single Phase
Machine Size 700 x 500 x 1750mm (LxWxH)
Optional Batch Coding
